U100BLP Custom Powerline Insulators Professional Electrical Glass Insulator For Coastal Transmission Lines

Product Categories
Huzhou Tailun Insulator Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

U100BLP Custom Powerline Insulators Professional Electrical Glass Insulator For Coastal Transmission Lines

Brand Name : TL

Standards : Complies with ANSI, IEC, and other international standards

Temperature Rating : Up to 200°C

Material : Glass

Dry lighting impulse withstand voltage : Up to 150kV

Usage : Electrical insulation

Power-frequency puncture withstand voltage : Up to 100kV

Corrosion Resistance : Yes

Mechanical failing load : 70-550kN

Durability : High

MOQ : 1

Price : USD 4-8

Payment Terms : T/T,D/P,D/A,L/C,Western Union

Application : Power transmission and distribution

Contact Now

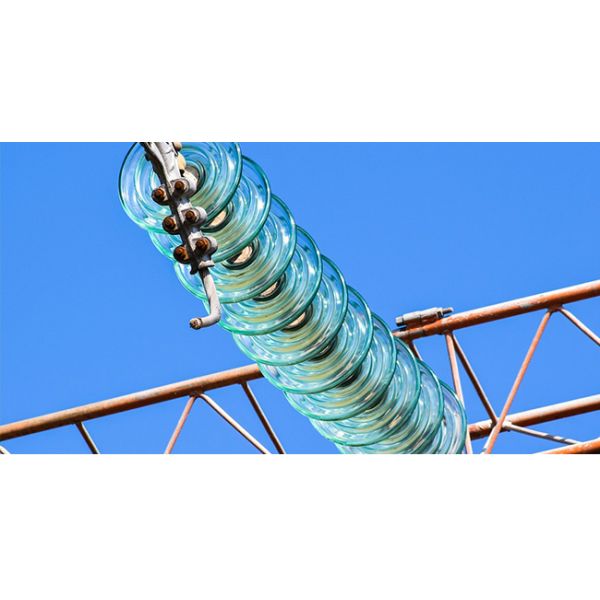

Anti-Fog Toughened Glass Insulators for Coastal Transmission Lines


Fog Glass Insulator is a critical component in electrical systems, engineered to insulate and stabilize conductors in high-humidity or fog-prone environments. Made from specially treated toughened glass with enhanced anti-fog properties, it features superior resistance to moisture accumulation and surface leakage, maintaining strong dielectric strength even in misty or condensation-heavy conditions. This design ensures consistent and reliable performance in power transmission and distribution networks, particularly in regions with frequent fog, coastal areas, or high atmospheric humidity.


Data Sheet

Fog Type Spacing(mm) Diameter (mm) Creepage Distance(mm) Standard Coupling Mechanical Faiing Load(kN)
U70BLP 146 280 450 16 70
U70BLP1 146 255 400 16 70
U70BLP2 146 320 550 16 70
U100BLP 146 280 450 16 100
U100BLP1 146 255 400 16 100
U100BLP2 146 320 550 16 100
U120BP 146 280 450 16 120
U120BP1

146

 255 400 16 120
U120BP2 146 320 550 16 120
U160BMP 155 320 550 20 160
U160BMP1 155 280 450 20 160
U160BLP 170 320 550 20 160
U160BLP1 170 280 450 20 160
U160BSP 146 320 550 20 160
U160BSP1 146 280 450 20 160
U210BP 170 320 550 20 210
U210BPL1 170 280 450 20 210
U240BP 170 320 550 24 240
U240BP1 170 280 450 24 240
U300B1 195 320 550 24 300
U300BP 195 380 690 24 300
U300BP1 195 380 635 24 300
U420BP 205 380 620 28 420
U550BP 240 390 710 32 550
